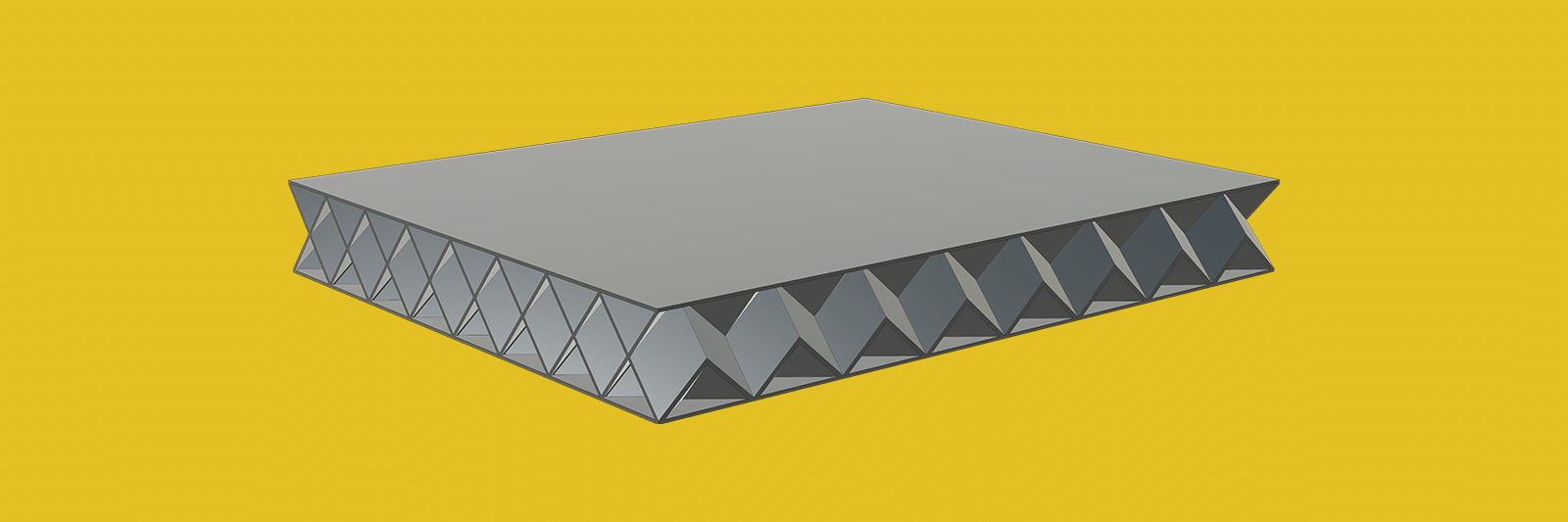

mechanical metamaterial metacore-ld render with abstract colorful background

The ideal lightweighting panel

MetaCORE-LD is MetaCORE engineered into a sandwich panel. This composite structure offers substantial weight reduction with a maximum bonding surface area. As a result, delamination of panels from the core material is a problem of the past.

Just like MetaCORE, MetaCORE-LD offers exceptional support to loads in the normal direction. Unlike other products, MetaCORE-LD goes further by providing unprecedented in-plane loading support. This means MetaCORE-LD panels can be manufactured with greater weight-bearing capacity and lower failures rates.

The thermal conductivity of MetaCORE-LD is also exceptionally low due to the amount of hollow internal space. Values of 25 mW/m-K are typical, and lower values are feasible for bespoke applications.

Between the low density, suppressed failure modes, and thermal insulating properties, MetaCORE-LD is an ideal paneling product.


MetaCORE-LD™ datasheet
4 pages (1 MB)
Technical datasheet for MetaCORE-LD.
Mechanical Metamaterials
24 pages (6 MB)
Thorough introduction to mechanical metamaterials, with detailed technical information about MetaCORE and MetaCORE-LD.

MetaCORE-LD characteristics and advantages

Base MetaCORE-LD offers a number of advantages out of the box and can be customized with additional characteristics as required.

Characteristic Advantage
Low Mass Density (Lightweight) Reduces total vehicle weight
High Strength Mitigates catastrophic failure
Low Thermal Conductivity Better temperature control
Pro-Isotropy Multi-directional performance
Corrosion Resistance Increased durability
Cost Savings Widely available raw materials
Customer-Preferred Manufacturing Methods On-demand customization

Try our Metamaterial Selector

Quickly determine which of our metamaterial solutions best suits you needs by adjust parameters such as density, CFE, SEA, and material type.

Use the Metamaterial Selector

Multi-objective optimization

Geometric motifs

The MetaCORE product line was conceived as a lightweight impact-absorbing structural material.

The same geometric motifs seen with MetaCORE have made their way into MetaCORE-LD, which offers our customers a greater access to bespoke solutions.

metacore-ld panel with metacore unit cell inset

MetaCORE-LD [MOX] contains a core of MetaCORE [MO] unit cells.

MetaCORE-LD competitive advantage

Increased resilience: MetaCORE-LD vs. HDPE

Lightweight sandwich panels are great for boxing out structures and providing insulation from the elements. Their fabrication is easy enough: one material (often a foam or honeycomb) is sandwiched between two thin panels fabricated from thermoplastics or metals.

It’s important when using sandwich panels to understand their strengths and weaknesses, particularly since they’re composite structures
with failure modes unique to their construction. Whether it be yielding, face wrinkling of the panel, or shear of the core, exactly what happens when excessively loaded depends on the relative densities and dimensions. These possibilities are well-summarized with a failure mode map. Knowing what failure mode to expect is important since face wrinkling may be acceptable whereas core shear could be catastrophic.

MetaCORE-LD advantage
MetaCORE-LD is engineered to shift the boundaries of a standard failure mode map by offering greater operational range of functionality and resilience to failure. Tolerable aesthetic defects can be substituted for catastrophic failure of the core material.

failure mode maps of metacore-ld and hdpe

Sandwich panel failure mode maps of MetaCORE-LD compared to Steel + HDPE. t is the thickness of the face, L is the spanwise length of the panel, P*c is the effective density of the core, and P is the density of CFRP used to construct the core.

Applicable markets

a semi-trailer truck on an empty highway


Transportation of goods and products is essential for our quality of life. Lighter, stronger materials let carriers haul more cargo per load, lower operating costs, and increase trailer lifetime. Exceptional cellular volume fraction provides superior thermal insulation for temperature sensitive cargo.


  • Panel lightweighting
  • Structural integrity
  • Better temperature control
an electric vehicle that's plugged in getting charged

Electric Vehicles

Energy is required to accelerate mass. For EVs, this immutable physical law means lighter vehicles can travel greater distances. Light materials with exceptional crashworthiness are key as we move to zero-emission vehicles.


  • Crash protection for batteries
  • Crash protection for unconventional occupant seating arrangements

Other market applications

We’re integrating our mechanical metamaterial technology into a wide array of markets, from aerospace to construction.

Check out Markets for more information on where we’re active and for purchasing/licensing options.

See all Markets
